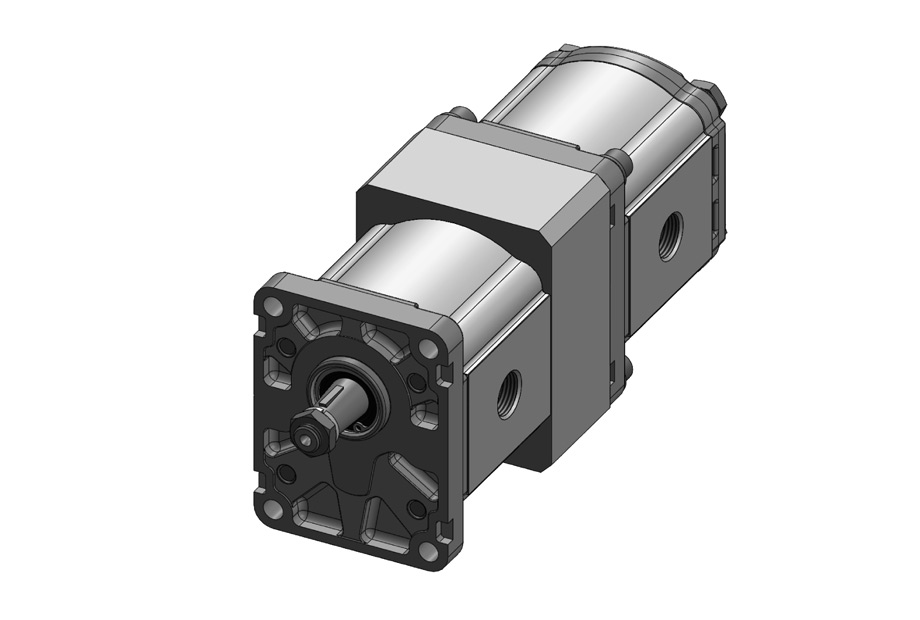

The multiple pumps (Tandem pumps) can be combined between all the available pump groups and sizes. The only limitation being that the group or size of the rear pump must be less or equal to the proceeding pump’s group and size.
Multiple pumps are available in these versions:
SHORT TANDEM (“C” type, standard) where eachstage is linked, but with reduced dimensions. For multiple pumps of the same group, is available the version with only one suction port (only for Gr.1 and Gr.2).
SEPARATED STAGES (type “L”) where the stages of each pumps are independent to allow the use of different fluids. Each gear is designed to tow a rear pump.
Multiple pumps can be composed by assembling single pumps with appropriate intermediate kits.
The front pump can have any type of flange and gear, while the secondary pump has the tapered shaft 1:8.
